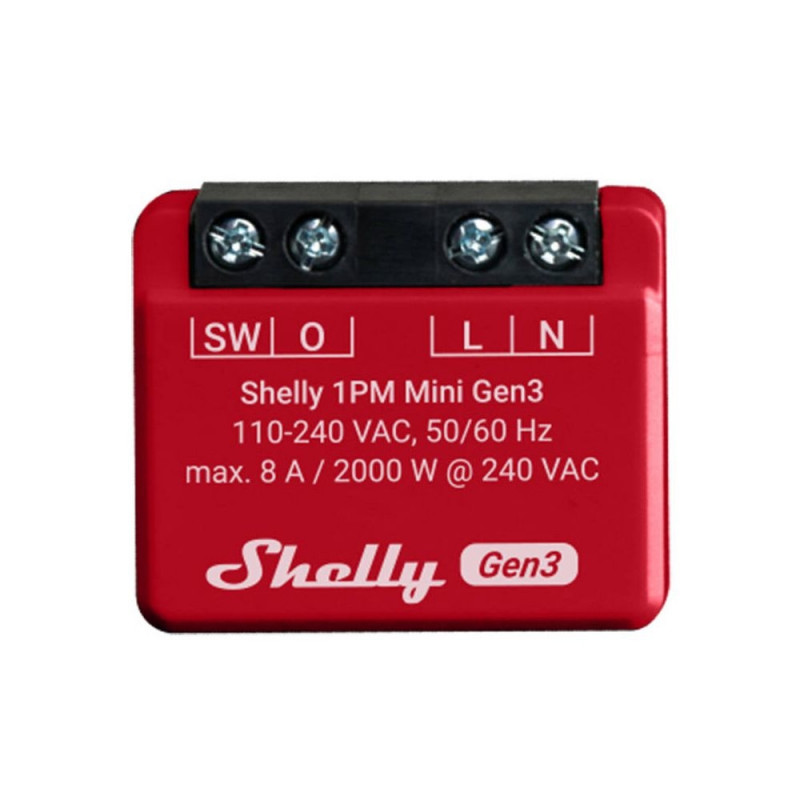

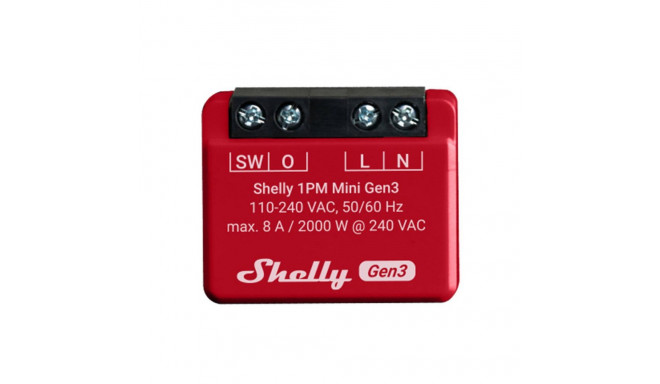

Shelly 1PM Mini Gen3 Controller, WiFi/Bluetooth
165-062270
Pamatinformācija
Shelly 1PM Mini Gen3 is a compact smart switch that not only allows you to remotely control electrical appliances, but also measures their energy consumption. It allows you to control and monitor your appliances from your smartphone, tablet, computer or home automation system, no matter where you are. It's an improved version of the Shelly Plus 1PM Mini with an advanced processor and more memory.
Compact design, maximum performanceDespite its compact size, the Shelly 1PM Mini Gen3 offers top-level performance - all thanks to its advanced processor and increased memory. Its compact design means you can easily install it in standard wall boxes, even in space-constrained areas. It is ideal for mounting behind outlets, light switches or other electrical devices.
Remote controlThe Shelly 1PM Mini Gen3 allows you to remotely control your electrical devices from anywhere, using your smartphone, tablet or computer. You no longer have to worry if you left a light on or forgot to turn off a fan. With the Shelly 1PM Mini Gen3, you can do it easily, even when you're away from home. What's more, the controller is compatible with home automation platforms such as Amazon Alexa, Google Smart Home and Samsung SmartThings, so you can conveniently control your devices with simple voice commands.
Expand the scope of your networkWith the Shelly 1PM Mini Gen3, you can also extend the range of your Wi-Fi network for IoT devices. This device acts as a signal booster, picking up Wi-Fi signals and amplifying them to cover a larger area. This ensures that your IoT devices will always stay connected.
Monitor your power consumptionNow you'll gain full control over your home's power consumption! With power consumption metering, you can monitor how much energy your connected devices are using in real time. This not only allows you to understand which devices are the most energy-intensive, but also helps you make informed decisions on energy savings. So you can effectively manage your home's energy consumption while saving money on your electricity bills!
Smart home on your termsThe controller offers the ability to create automations and work schedules that adapt to your daily life. Would you like the lights to turn on at a certain time of day? Or would you like the fan to automatically turn off after an hour? All this and much more is possible with Shelly 1PM Mini Gen3.
| Manufacturer | Shelly |
|---|---|
| Model | 1PM Mini Gen3 |
| Power supply | 110 - 240 VAC |
| Relay | Non-contact NO, 1-pole, micro-contact |
| Power consumption | < 1.2 W |
| External protection | Breaking characteristic B or C, max. 10 A maximum rated current, min. 6 kA interrupting capacity, class 3 energy limitation |
| Max. switching voltage | 240 VAC |
| Max. switching current | 8A/240 VAC |
| Max. switching power | 2000 W |
| Power measurement | Yes |
| Voltage surge protection | Yes |
| Current overload protection | Yes |
| Power overload protection | Yes |
| Internal temperature sensor | Yes |
| Wi-Fi communication protocol | 802.11 b/g/n |
| Range | Up to 30 m indoors and up to 50 m outdoors |
| Bluetooth wireless communication protocol | 4.2 |
| Range | Up to 10 m inside and up to 30 m outside |
| CPU | ESP-Shelly-C38F |
| Flash memory | 8 MB |
| Schedules | 20 |
| Webhooks (URL Actions) | 20 with 5 URLs per action |
| Scripts | Yes |
| MQTT | Yes |
| UDP | Yes |
| Advanced scheduling | Yes |
| KVS (Key-Value Store) | Yes |
| Dimensions | 29 x 34 x 16 ±0.5 mm |
| Weight | 18 ±1 g |
| Cable cross section | 0.2 to 2.5 mm² / 24 to 14 AWG (single wire, multicore and bootlace terminated) |
| Exposed wire length | 6 to 7 mm / 0.24 to 0.28 in. |
| Mounting | In a wall box |
| Housing material | Plastic |
| Ambient operating temperature | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity | 30 % to 70 % RH |
| Max altitude | 2000 m |
