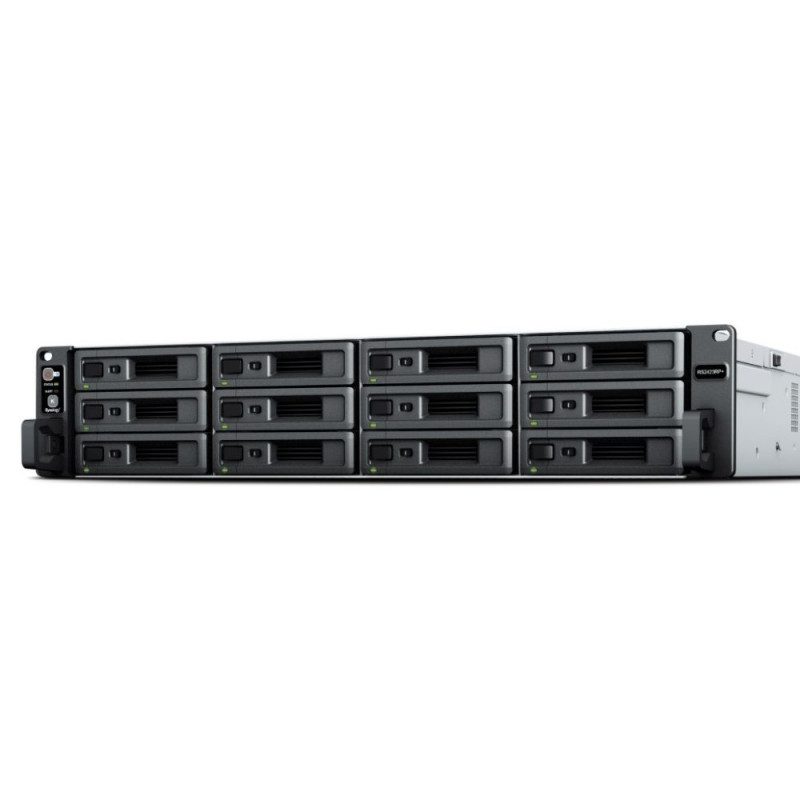

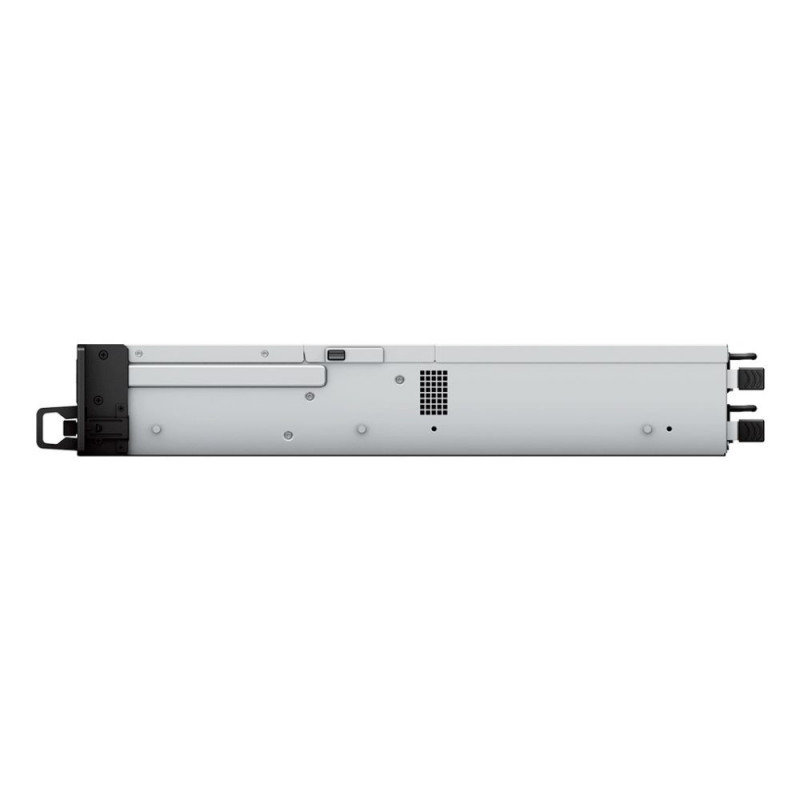

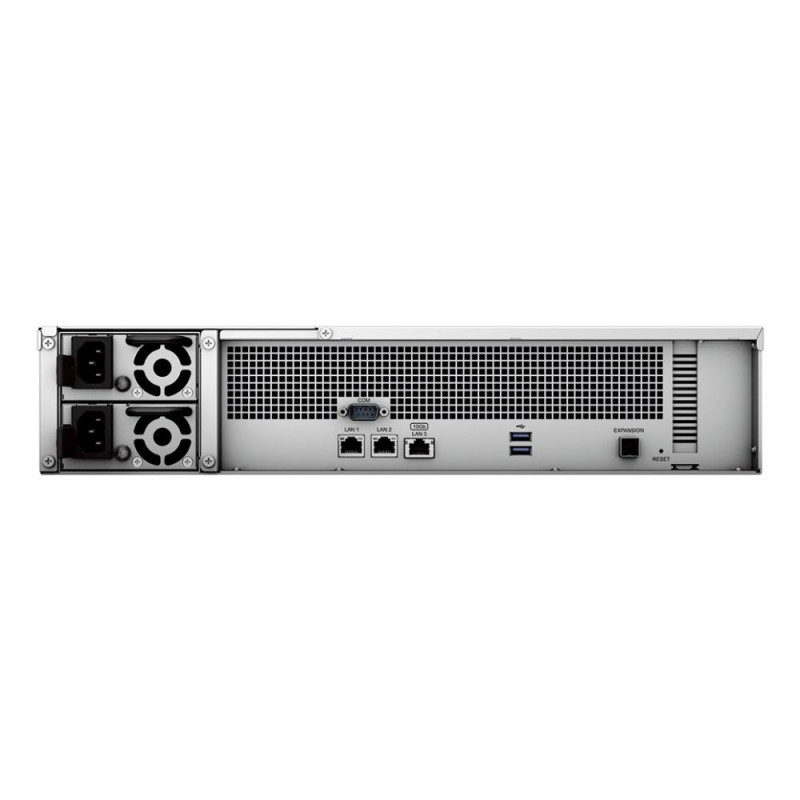

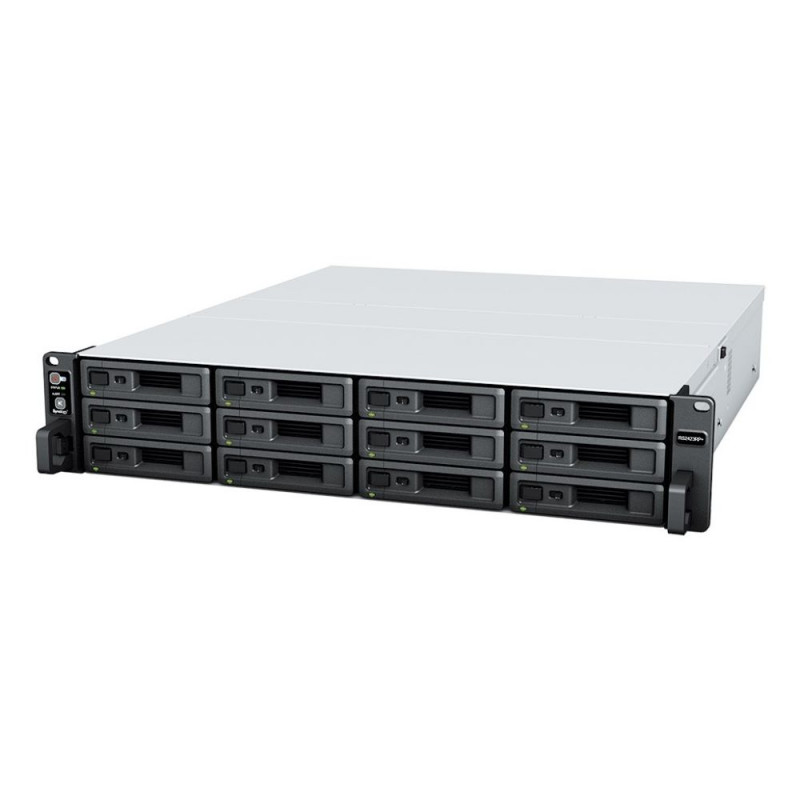

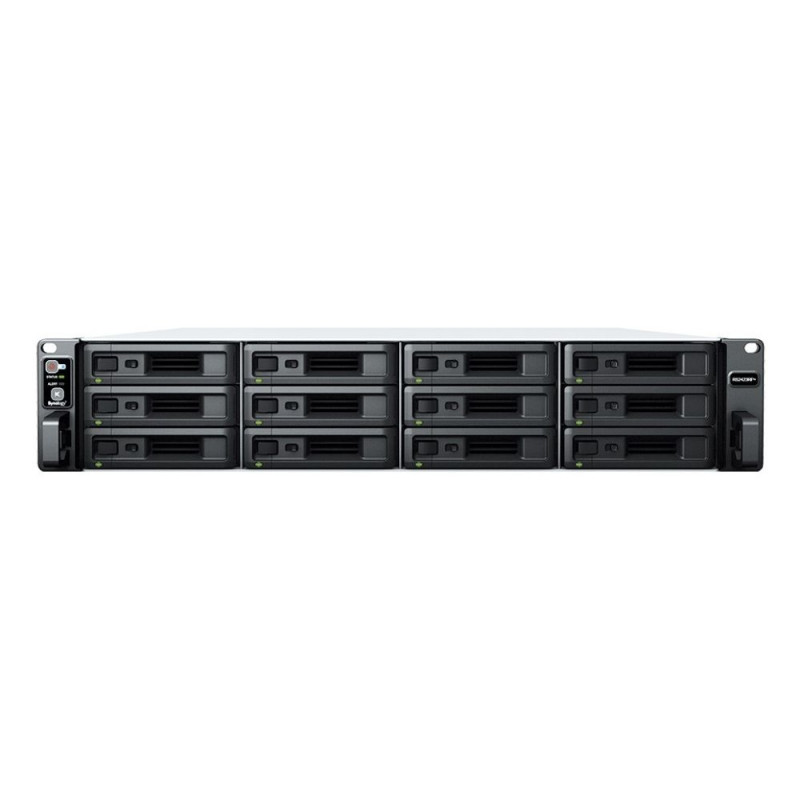

Network Attached Storage - Synology RS2423+ 12-Bay Rackmount Grey/Black Synology RS2423+ NAS; 2U Rac
158-SYSERRS242C4
will be applied in shopping cart
(min. 5€ purchase)
Main info
The NAS Synology RS2423+ supports up to 12 storage drives and features an AMD Ryzen V1780B processor with 8 GB DDR4 ECC memory, expandable to 32 GB. It includes multiple network ports, including 2x 1GbE and 1x 10GbE, and supports various RAID levels for data redundancy.Warning: Last items in stock!
The NAS Synology RS2423+ supports up to 12 storage drives and features an AMD Ryzen V1780B processor with 8 GB DDR4 ECC memory, expandable to 32 GB. It includes multiple network ports, including 2x 1GbE and 1x 10GbE, and supports various RAID levels for data redundancy.
- Processor: AMD Ryzen V1780B with 4 cores and boost frequency of 3.6 GHz
- Memory: 8 GB DDR4 ECC UDIMM, expandable up to 32 GB with 2 memory slots
- Storage: Supports up to 12 drives (3.5" SATA HDD/2.5" SATA SSD) with RAID support (JBOD, 0, 1, 5, 6, 10)
- Network: 2x 1GbE RJ-45 and 1x 10GbE RJ-45 with link aggregation and Wake-on-LAN support
- Dimensions: 2U rack mount chassis, weighing 11.5 kg with a depth of 562 mm
| Processor | |
|---|---|
| Number of processors supported | 1 |
| Processor model | V1780B |
| Processor cores | 4 |
| Processor family | Ryzen Embedded |
| Processor boost frequency | 3.6 GHz |
| Processor manufacturer | AMD |
| Processor frequency | 3.35 GHz |
| Processor generation | AMD Ryzen Embedded V1000 Series |
| Memory | |
| ECC | Yes |
| Internal memory type | DDR4 |
| Memory form factor | UDIMM |
| Internal memory | 8 GB |
| Memory slots | 2 |
| Maximum RAM supported | 32 GB |
| Design | |
| Cooling type | Active |
| Product colour | Grey, Black |
| LED indicators | Yes |
| Fan diameter | 6 cm |
| Number of fans | 3 |
| Chassis type | Rack (2U) |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 119.95 W |
| Power supply unit (PSU) capacity | 500 W |
| Number of power supply units | 1 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
| Width | 482 mm |
| Weight | 11.5 kg |
| Depth | 562 mm |
| Height | 88 mm |
| Network | |
| Ethernet LAN | Yes |
| Wake-on-LAN ready | Yes |
| Ethernet LAN data rates | 100, 10, 10000 Mbit/s, 1000 Mbit/s |
| Link aggregation | Yes |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| Copper ethernet cabling technology | 100BASE-TX, 1000BASE-T, 10GBASE-T, 10BASE-T |
| iSCSI support | Yes |
| Performance | |
| Type | NAS |
| Noise level | 52.3 dB |
| Security algorithms | AES |
| Access Control List (ACL) | Yes |
| Backup function | Yes |
| System log | Yes |
| Management protocols | SNMP |
| Backup features | iSCSI LUN, Cloud |
| Snapshot | Yes |
| Built-in FTP server | Yes |
| Multilingual support | Yes |
| Packaging content | |
| Cables included | AC |
| Rack mount kit | Yes |
| Power cables quantity | 1 |
| Software | |
| Operating system installed | DiskStation Manager |
| Operating system version | 7.1.1 |
| Storage | |
| RAID support | Yes |
| RAID levels | JBOD, 10, 6, 0, 1, 5 |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 12 |
| Supported storage drive interfaces | Serial ATA |
| Storage drive sizes supported | 2.5, 3.5" |
| Supported file systems | Fat, ext3, NTFS, exFAT, ext4, HFS+, BTRFS |
| Hot-swap drive bays | Yes |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 3 |
| PCI Express x8 (Gen 3.x) slots | 1 |
| USB port | Yes |
| Other features | |
| Compliance certificates | RoHS, CE |
| Sustainability | |
| Sustainability compliance | Yes |
| Width | 482 mm |
| Height | 88 mm |
| Length | 600 mm |
| Product Weight | 8500 g |
| Country | TW |
