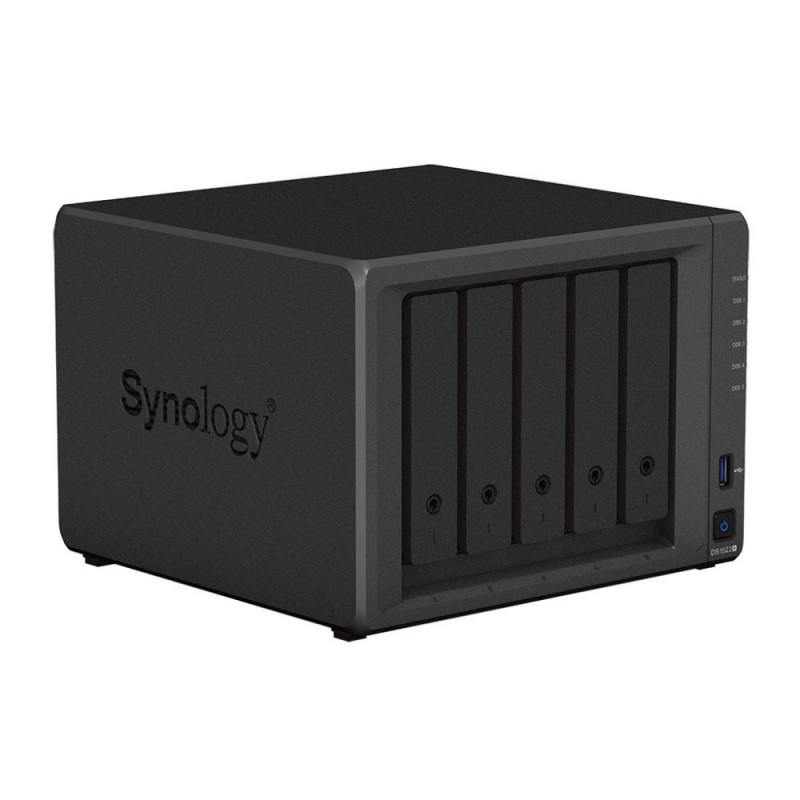

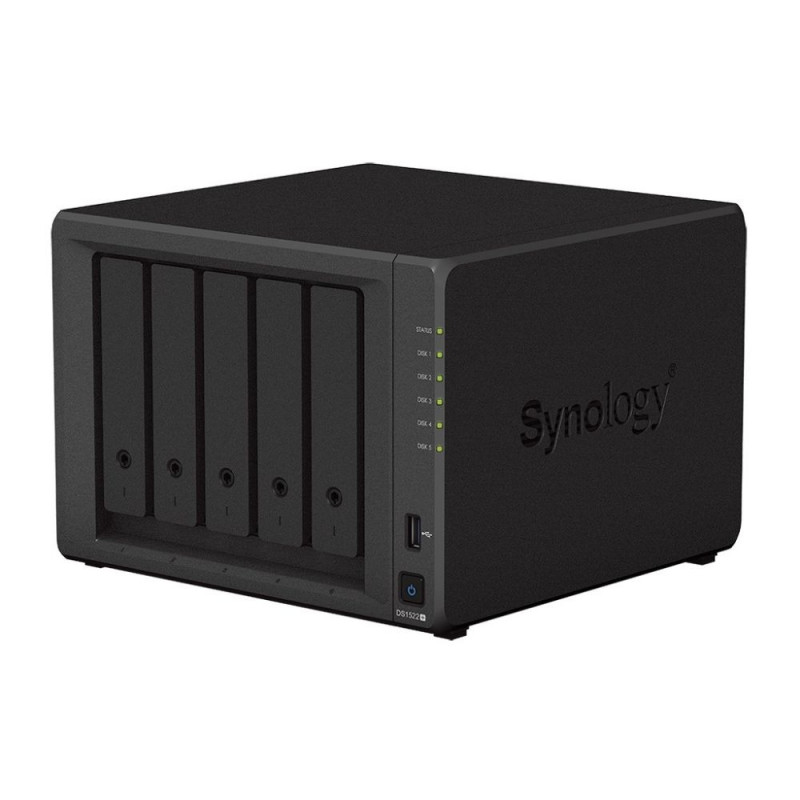

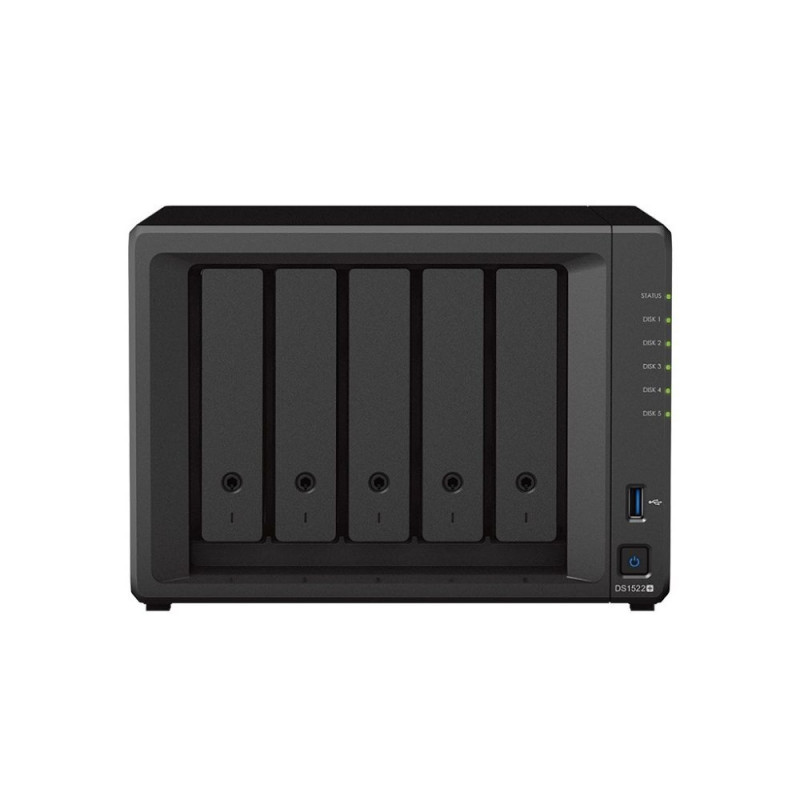

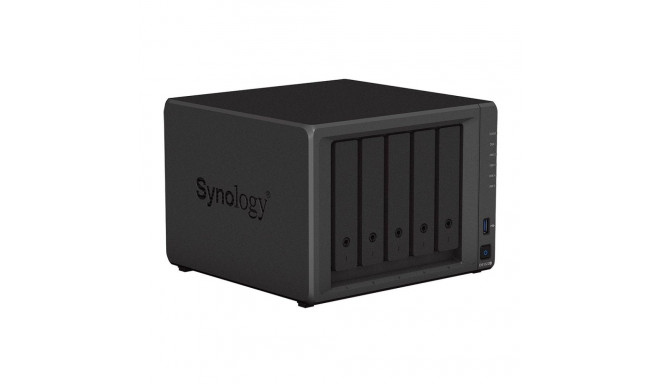

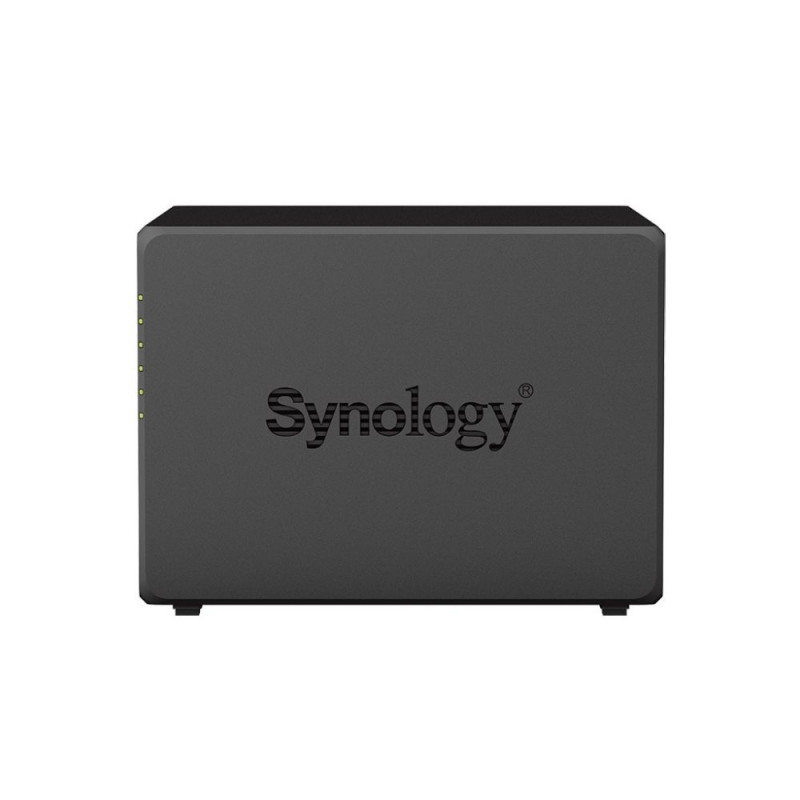

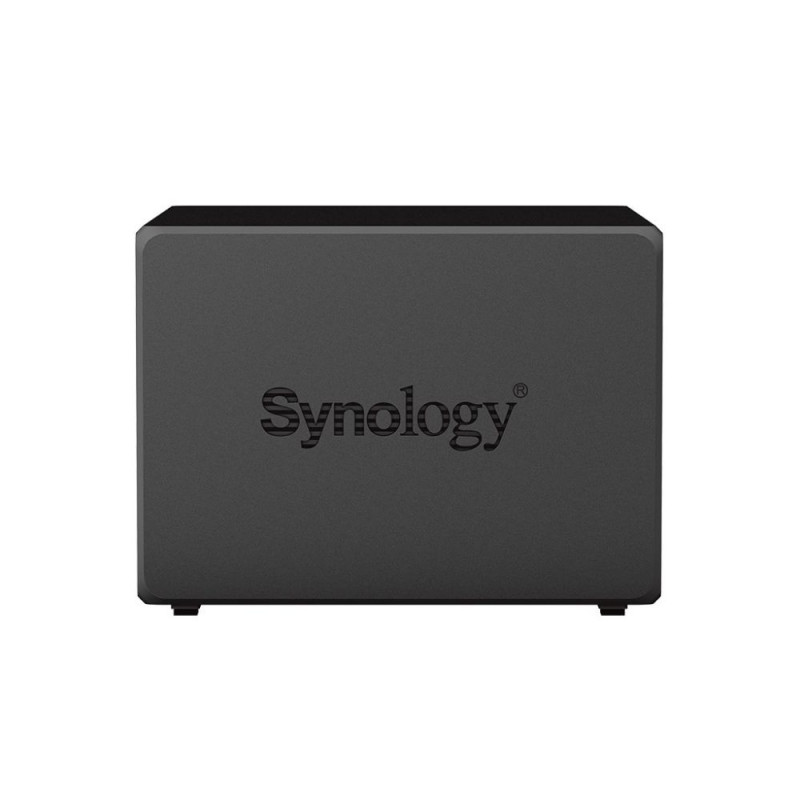

Network Attached Storage - Synology DiskStation DS1522+ AMD R1600 5-Bay 4x LAN Black
158-SYSERDS152R5
Main info
The Synology DiskStation DS1522+ features an AMD R1600 processor with a boost frequency of 3.1 GHz and supports up to 32 GB of RAM. It has five drive bays, supports various RAID levels, and includes four Ethernet LAN ports for connectivity.Warning: Last items in stock!
The Synology DiskStation DS1522+ features an AMD R1600 processor with a boost frequency of 3.1 GHz and supports up to 32 GB of RAM. It has five drive bays, supports various RAID levels, and includes four Ethernet LAN ports for connectivity.
- Powerful AMD R1600 processor with a boost frequency of 3.1 GHz for efficient performance.
- Supports up to 32 GB of RAM and features ECC for enhanced data integrity.
- Flexible storage options with support for up to 5 drives and various RAID configurations.
- Robust network capabilities including 4 Ethernet ports and support for iSCSI and link aggregation.
| Technical Details | |
|---|---|
| Sustainability Certificates | RoHS |
| Sustainability Compliance | Yes |
| Processor | |
| Processor Manufacturer | AMD |
| Processor Family | AMD Embedded R-Series SoC |
| Processor Cores | 2 |
| Processor Frequency | 2.6 GHz |
| Memory | |
| Memory Slots | 2 |
| Memory Form Factor | SO-DIMM |
| Internal Memory Type | DDR4 |
| Internal Memory | 8 GB |
| Design | |
| Chassis Type | Tower |
| Fan Diameter | 9.2 cm |
| Number of Fans | 2 fan(s) |
| Cooling Type | Active |
| Power | |
| AC Input Voltage | 100 - 240 V |
| Power Supply Unit (PSU) Capacity | 120 W |
| Power Consumption (HDD Standby) | 16.71 W |
| Power Consumption (Typical) | 52.06 W |
| Operational Conditions | |
| Operating Relative Humidity (H-H) | 5 - 95% |
| Storage Temperature (T-T) | -20 - 60 °C |
| Operating Temperature (T-T) | 0 - 40 °C |
| Weight & Dimensions | |
| Weight | 2.7 kg |
| Depth | 223 mm |
| Width | 230 mm |
| Height | 166 mm |
| Network | |
| Wake-on-LAN Ready | Yes |
| Ethernet LAN Data Rates | 100, 1000 Mbit/s, 10 |
| Ethernet LAN Data Rate Supported (Max) | 10000 Mbit/s |
| Supported Network Protocols | SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV |
| Performance | |
| Web-based Management | Yes |
| Security Algorithms | HTTPS |
| Hot Spare | Yes |
| Access Control List (ACL) | Yes |
| Storage | |
| Supported Storage Drive Types | HDD & SSD |
| Number of M.2 (M & B) Slots | 2 |
| Hot-swap Drive Bays | Yes |
| Number of Storage Drives Supported | 5 |
| RAID Levels | 0, 10, 5, 1, JBOD, 6 |
| Ports & Interfaces | |
| eSATA Ports Quantity | 2 |
| Ethernet LAN (RJ-45) Ports | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity | 2 |
| Width | 230 mm |
| Height | 166 mm |
| Length | 223 mm |
| Product Weight | 2700 g |
| Country | TW |
