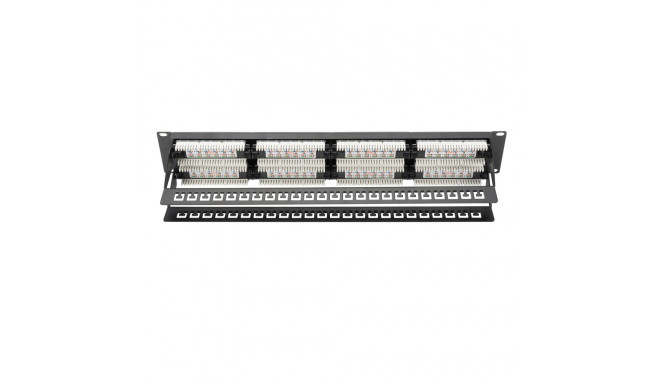

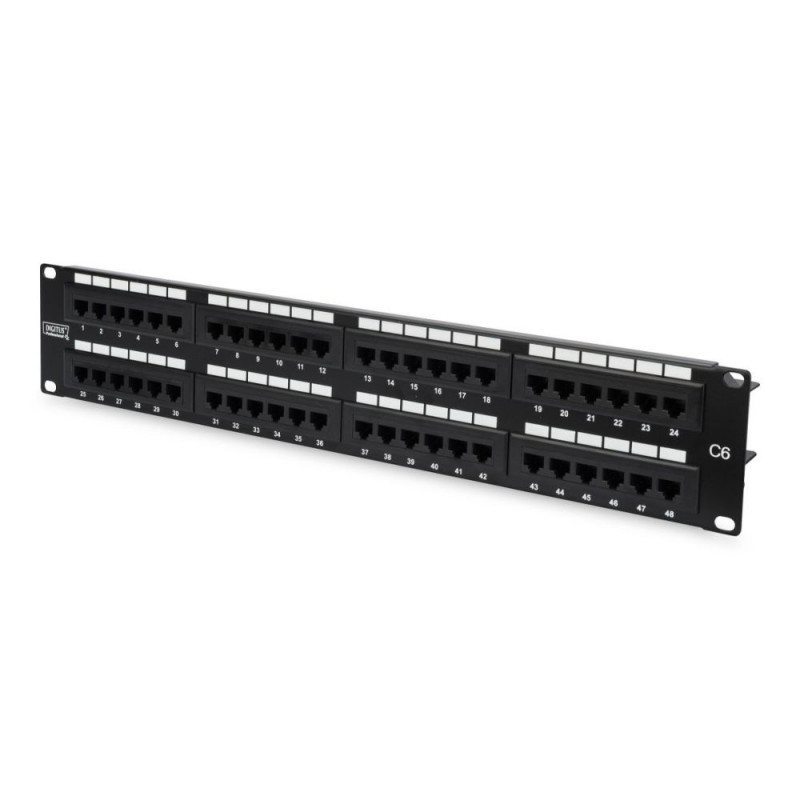

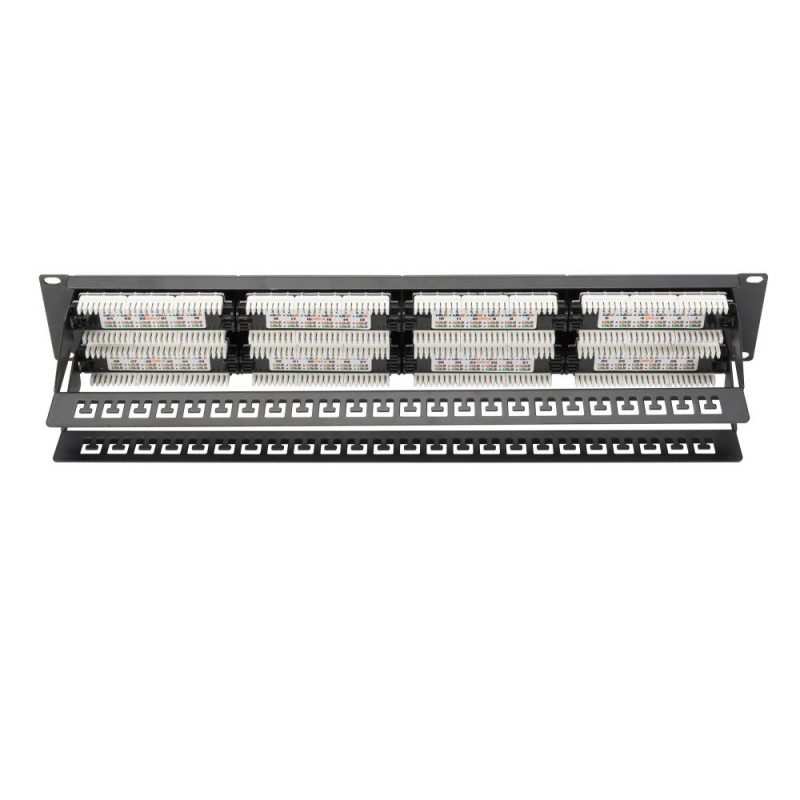

DIGITUS Patch panel, CAT6 19",48xRJ45,black
126-A-PAN6-48U
Main info
DIGITUS CAT 6, Class E Patch Panel CAT 6 patch panel, unshielded, 48-port RJ45, 8P8C, LSA, 2U, rack mount, bl, 482x44x109 mm Future-oriented standards and high-end quality for your network. The unshielded CAT 6 Patch Panel from DIGITUS® is availablWarning: Last items in stock!
| Transmission properties | Category 6 |
| Area of application | Up to 250 MHz, 1GBase-T, PoE |
| RJ45 female material | ABS UL 94V-0 |
| RJ45 female contact | Tinned phosphor bronze, 0.5 µ gold-plated contact |
| RJ45 shielding | Tinned bronze |
| LSA termination clamp | Krone LSA+, UL 94V-2, zinc plated phosphor bronze |
| Ground wire | Not included |
| Insertion force | 30N max. (IEC 60603-7-5) |
| Retention strength | 7.7 kg between jack and plug |
| IDC wire size | 22 – 26 AWG solid and stranded conductor |
| Insulation resistance | > 500 MOhm |
| Dielectric strength | 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground) |
| Color | black, RAL 9005 |
| Ports | 48 |
| Units | 2 |
| Norms | ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C |
| Housing material | 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110 |
| Conductor plate | FR4, UL 94V-0 |
| Operation temperature | -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) |
| Mating cycles female | > 750 acc. to ISO/IEC 11801, IEC 60603-7-5 |
| Clamp | > 200 acc. to ISO/IEC 11801, IEC 60603-7-5 |
| Contact resistance | < 20 MilliOhm |
| Category | CAT 6 |
Dimensions and weights
Product codes
