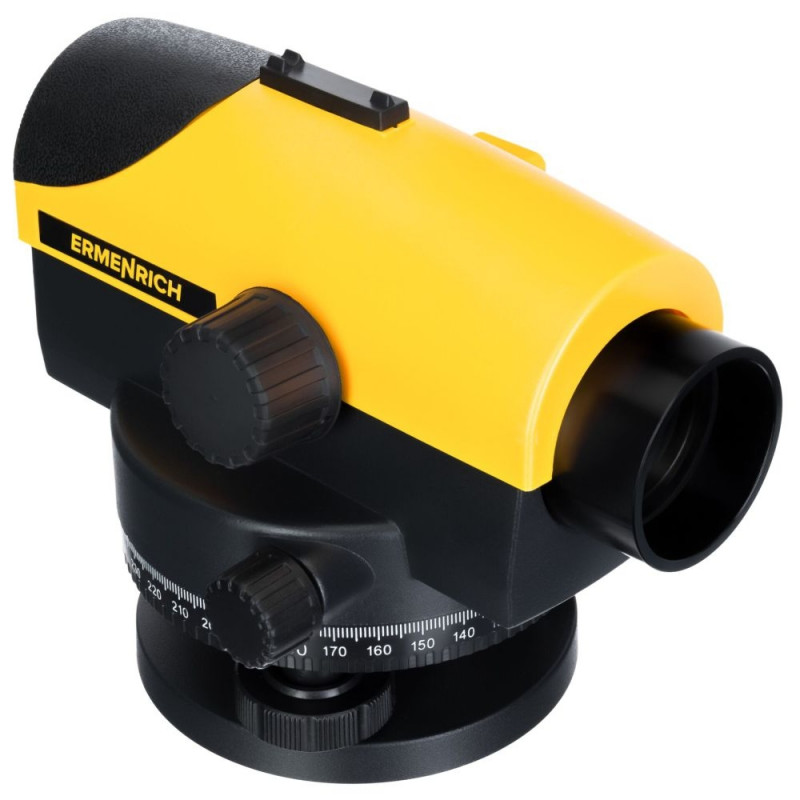

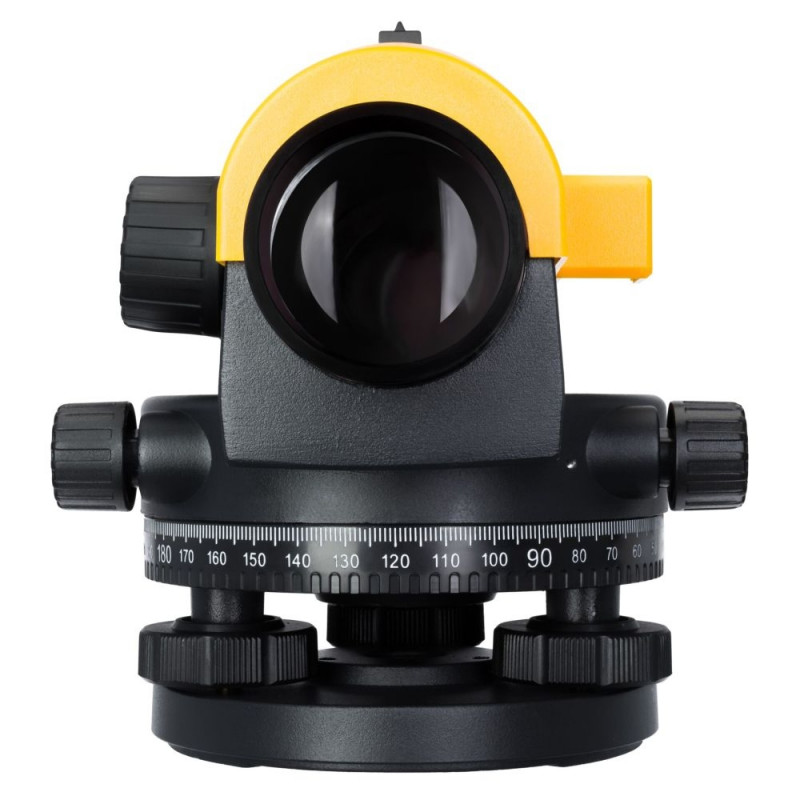

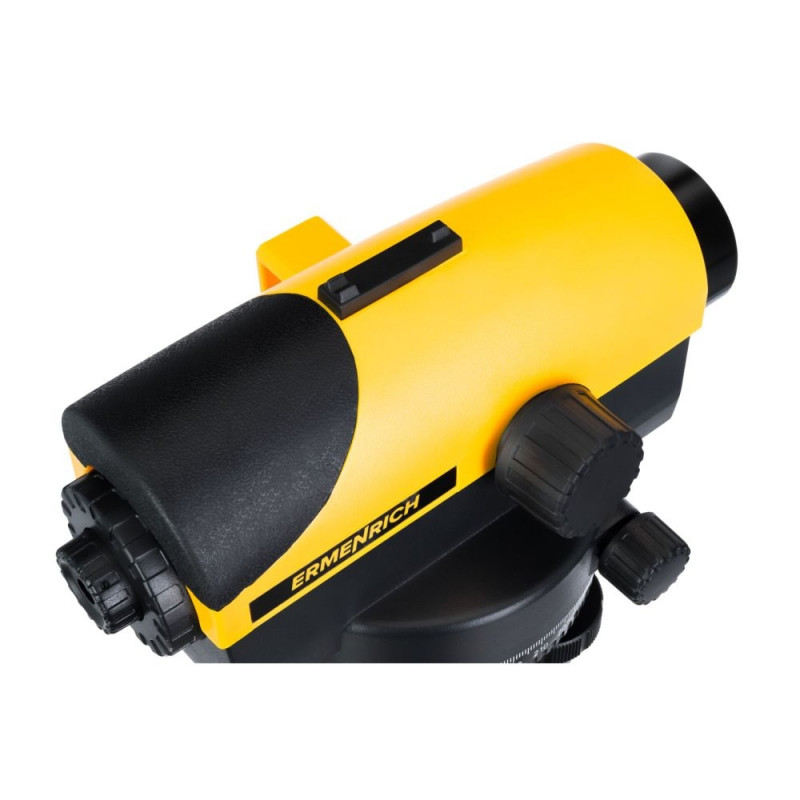

Ermenrich PL30 Optical Level
14-117611
FREE SHIPPING
WITHIN ESTONIA!
Main info
Warning: Last items in stock!

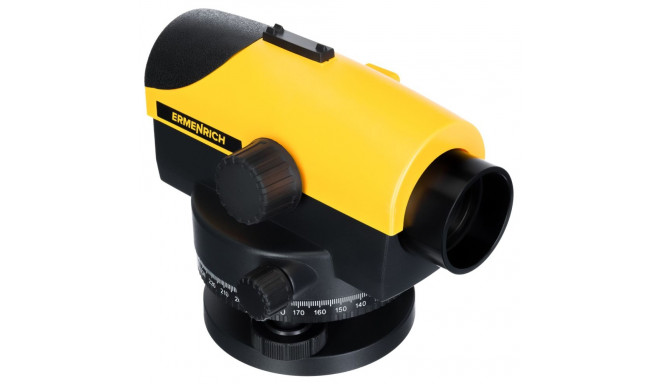

The Ermenrich PL30 leveller is an optical instrument that allows you to measure the vertical height (difference in height) between two points distant from each other, angles in the horizontal plane and the distance to an object. The 32x magnification allows you to see the millimeter scale of a leveling bar at a distance of up to about 50 meters. The metric E" divisions are visible over the entire working distance - up to 120 meters. The optical leveler is equipped with a compensator, which automatically aligns the finish line, making the work easier and more convenient. The compensator is robust and the measurement accuracy high.

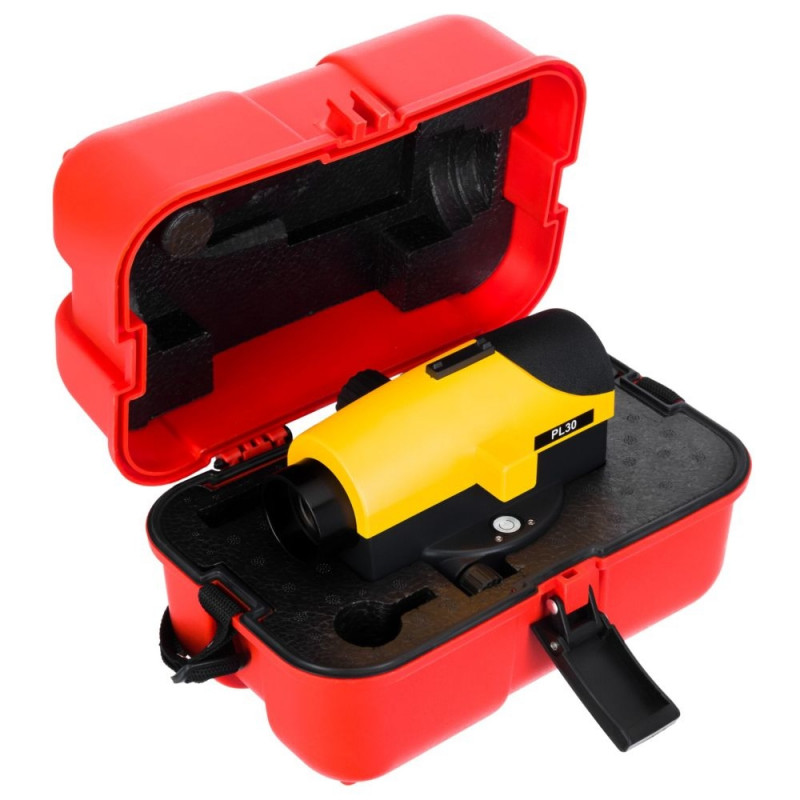

The optical leveller is ideal for construction, landscaping and surveying. It can be used both for professional purposes (construction of large buildings and facilities, laying foundations) and to solve everyday tasks in the household (leveling the floor, building a fence, setting up a greenhouse). The unit is robust and splash-proof, and the set includes alignment tools.
Note: To measure with the optical leveler, you need a leveling bar and a tripod (not included).
Features:
- Optical, with compensator
- Upright image of the target
- Magnification: 32-fold
- Lens diameter: 36 mm
- Water resistant
- M16 or 5/8-inch tripod thread
- Colour: purple / black
Technical data:
- Level type: optical
- Compensator type: air damping
- Image of the target: upright
- Near focus: 0.3 m
- Field of view: 1°30'
- Height accuracy for single measurement: 1.6 mm / 30 m
- Standard deviation per 1 km (double levelling): 1 mm
- Working range of the compensator: 0.3 angular seconds
- Compensation locking
- Stadia ratio: 100
- Horizontal circle: 1° or 1 gon
- Sensitivity of the bubble: 8'/2 mm
- Housing: Robust plastic
- Water resistance: IP54 (splash-proof)
| Type | Measuring Instrument |
| Colour | Purple / Black |
| Protection Class (IP Code) | IP54 |
