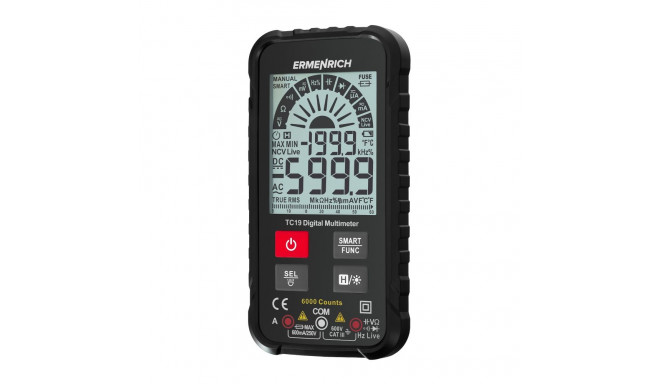

Ermenrich Zing TC19 Digital Multimeter
144-L_82984
Main info
Warning: Last items in stock!
Ermenrich Zing TC19 Digital Multimeter is a must have tool in the daily work of the professional electrician. In everyday life, it helps to test electrical appliances and wiring and find faults in the electrical equipment of the car. Its compact and lightweight design makes it easy to carry around, and simple controls make routine work easier. The multimeter provides high measurement accuracy as it uses the True RMS calculations.
The multimeter measures voltage, resistance, amperage, frequency, capacitance, and duty cycle. Additional features include testing networks for open or short circuit, diode test, non-contact voltage detection (NCV), and phase detection. The Smart function makes it easy to measure the basic characteristics of an electrical signal. The hold function is useful when you want to “freeze” the readings on the screen and check them out later.

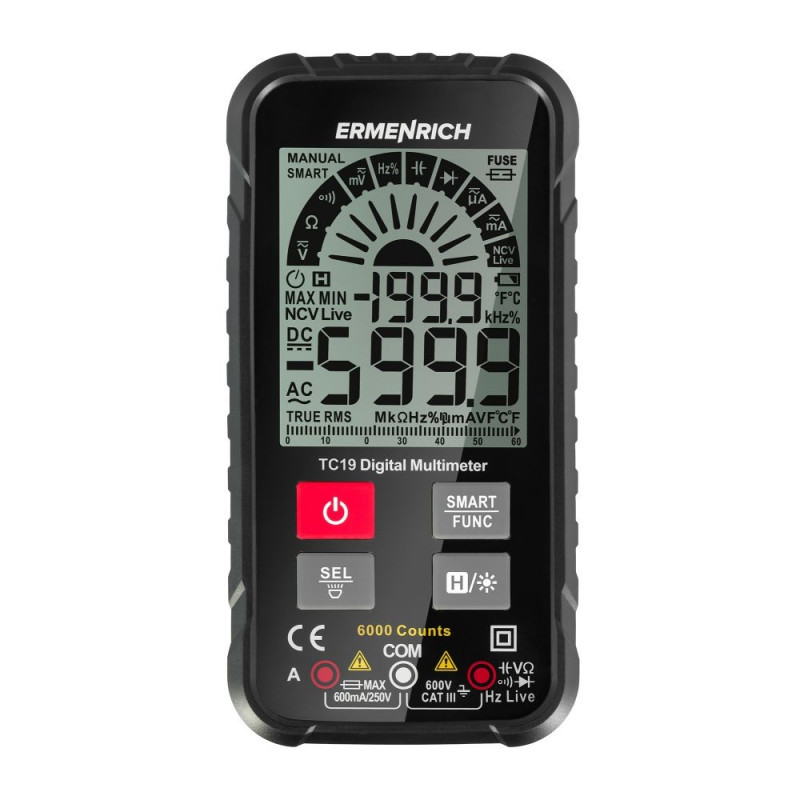

The device has a monochrome screen that displays a graphic scale as well as readings. The multimeter has a flashlight so that you can work in low-lighting conditions and with electrical distribution boards. The device is powered by standard batteries. To save battery power, it automatically turns off after long periods of non-use.
Key features:
- Multifunctional digital multimeter
- Combines the functions of voltmeter, ammeter, ohmmeter, capacitance meter, frequency meter, and duty cycle meter
- Phase detector, diode test, NCV function, continuity test, True RMS calculations
- Additional graphic scale for easy screen reading
- Powered by standard batteries

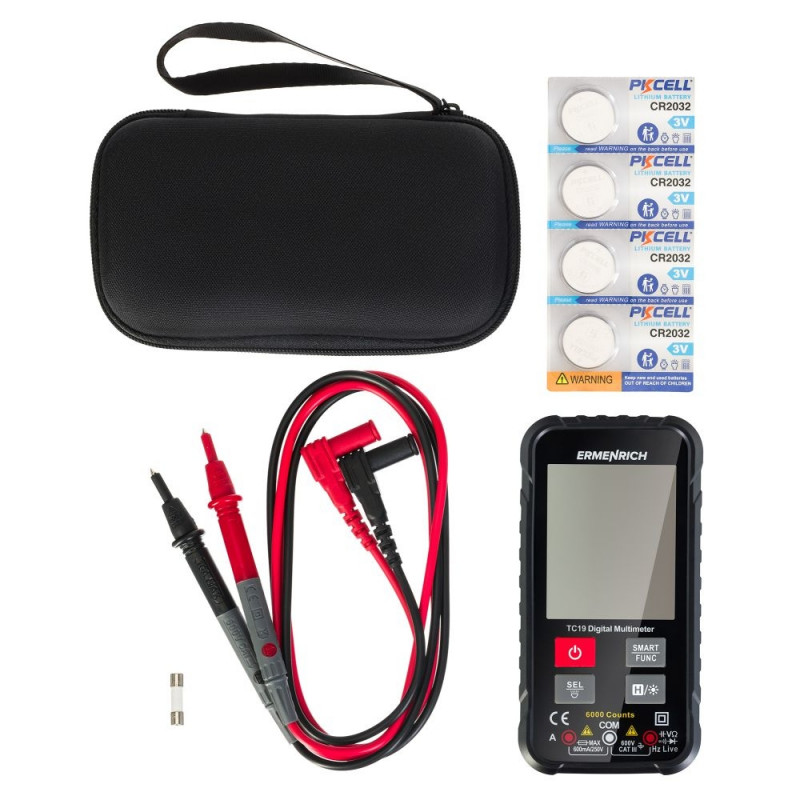

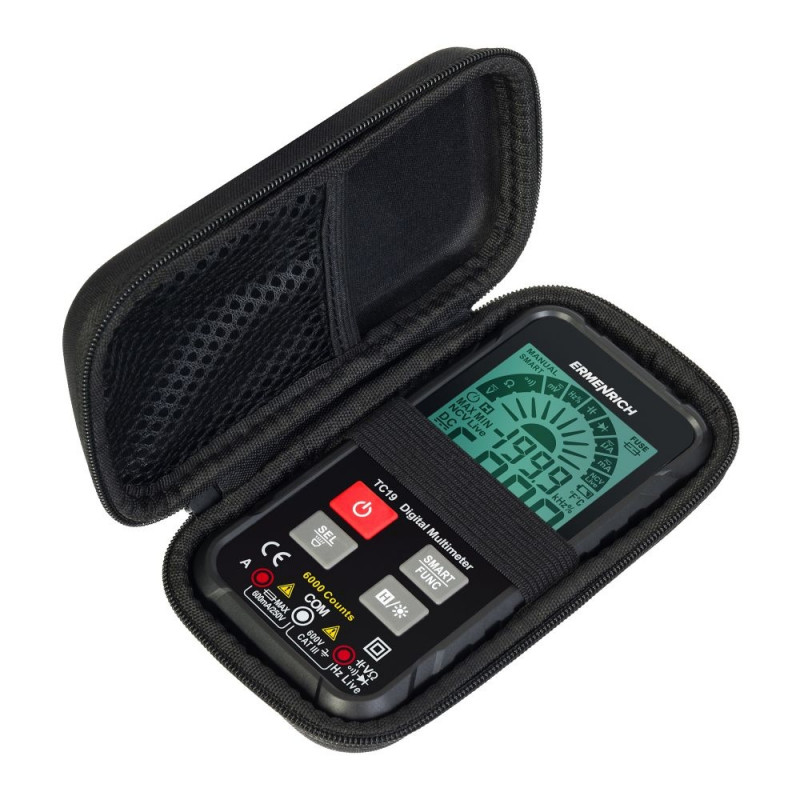

The kit includes:
- Digital multimeter
- Probes
- Pouch
- User manual and warranty card
| Brand | Ermenrich |
| Warranty | 5 лет |
| EAN | 5905555017631 |
| Package size (LxWxH) | 16x9x5 cm |
| Shipping Weight | 0.26 kg |
| Selection of the measuring limit | automatic |
| Basic functions | voltmeter, ammeter, ohmmeter, capacitance meter, frequency meter, duty cycle meter |
| DC voltage measuring limit | 60mV/600mV/6V/60V/600V: error ±(0.5%+3) |
| AC voltage measuring limit | 60mV/600mV/6V/60V/600V: error ±(1.0%+3) |
| DC current measuring limit | 6000µA/60mA/600mA: error ±(1.2%+5) |
| AC current measuring limit | 6000µA/60mA/600mA: error ±(1.5%+5) |
| Resistance measuring limit | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ: error ±(1.0%+5) |
| Capacity measuring limit | 6nF/60nF/600nF/6μF/60μF/600μF/6mF/60mF: error ±(4.0%+5) |
| Frequency measurement limits | 10Hz/100Hz/1000Hz/10kHz/100kHz/1000kHz/10MHz: error ±(1.0%+5) |
| Duty cycle measurement range | 1–99%: error ±(3.0%+5) |
| Diodes test | yes |
| Non-contact voltage detection (NCV) | yes |
| True RMS | yes |
| Hold function | yes |
| Automatic recognition function (Smart) | + (only for DC and AC voltage, resistance and continuity) |
| Phase detector (Live) | yes |
| Overvoltage category | CAT III 600V |
| Display counts | 6000 |
| Display backlight | yes |
| Graphic scale | yes |
| Flash light | yes |
| Safety standards | EN61010-1,-2-030; EN61010-2-033; EN61326-1 |
| Continuity test | yes |

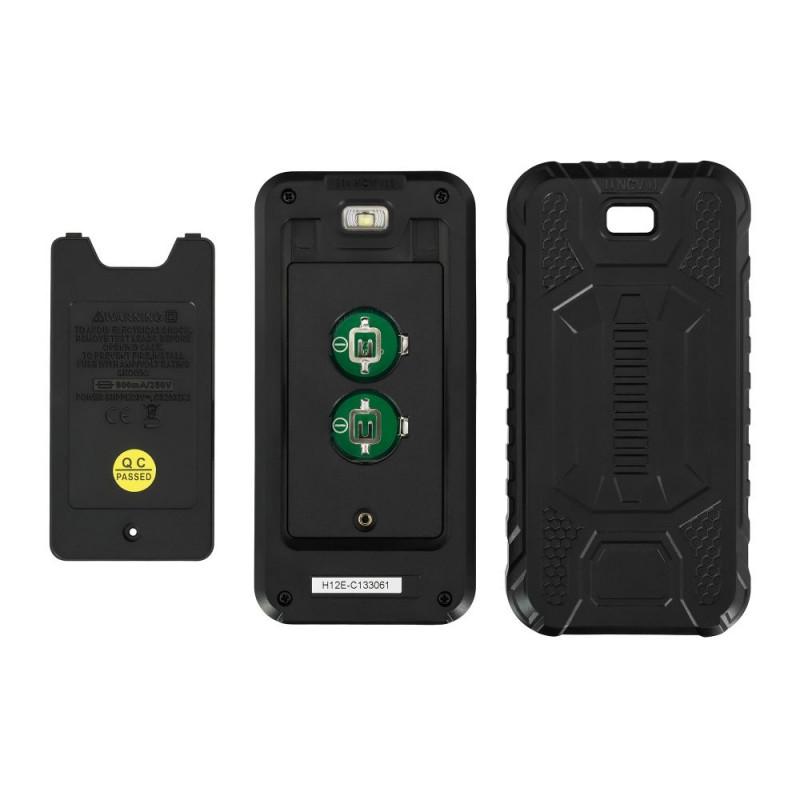

| Power supply | CR2032 batteries, 2pcs. (not included) |
| Low battery status indicator | yes |
| Auto power off | yes |
| *Can be put into parcel-machine | Истина |
