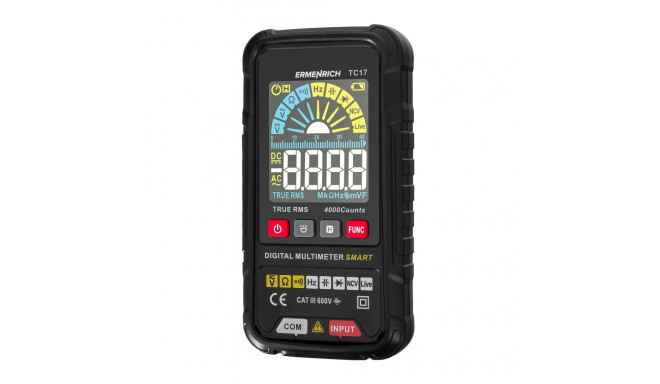

Ermenrich Zing TC17 Digital Multimeter
144-L_82983
Main info
Warning: Last items in stock!

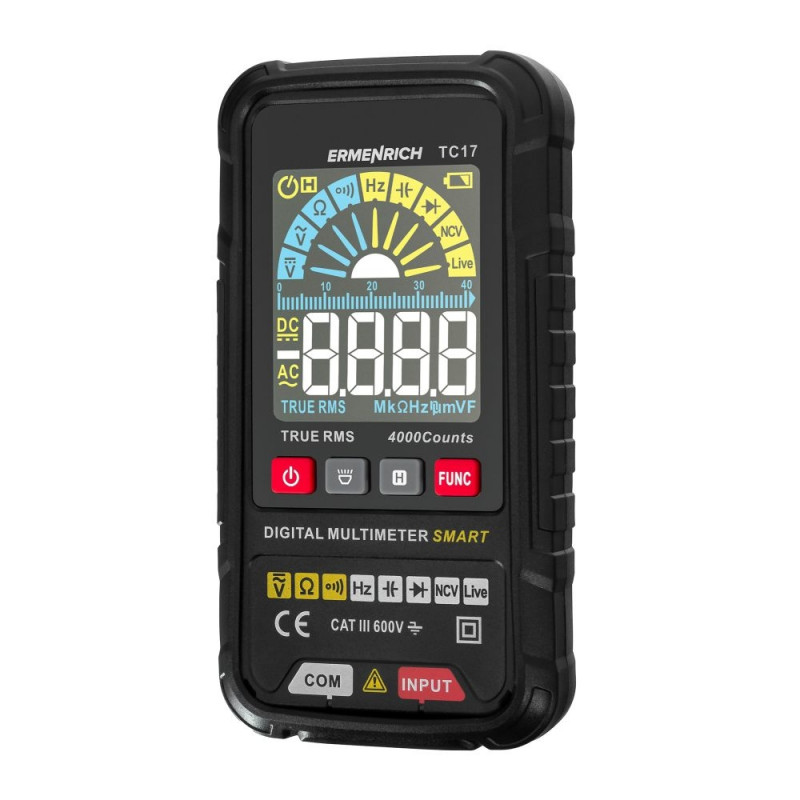

The Ermenrich Zing TC17 digital multimeter is an accurate (True RMS) and compact measuring device for technicians and handymen. It is suitable for the diagnostics of electrical networks in apartments, country houses, industrial facilities, office premises, and cars as well as for troubleshooting electrical devices. The multimeter fits in your pocket, and so it is convenient to carry with you even when working on large sites.

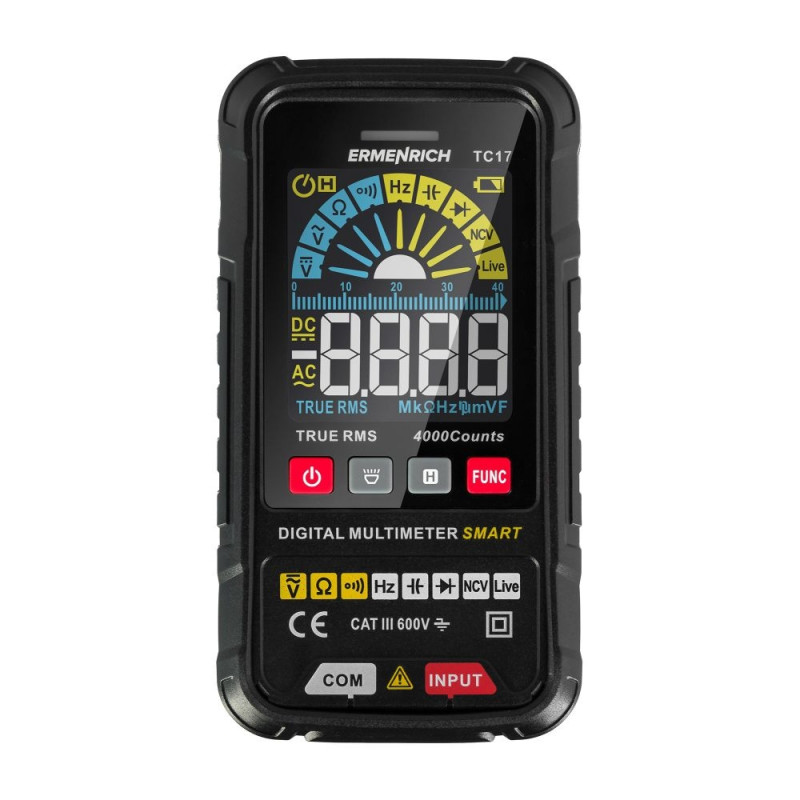

The color screen displays readings, but it also features a graphic scale. It shows both the overall measurement range and the value of a single measured parameter. When the device is on, it activates the Smart function. The device automatically starts detecting and measuring the incoming parameter (resistance, voltage, and continuity). If necessary, you can switch to manual control to access all of the operating modes. In addition to resistance and voltage, the multimeter measures capacitance and frequency. The continuity test mode is combined with resistance measurement. The NCV function detects hazardous voltage points, e.g., hidden wiring. There is an option to test diodes for open and short circuits.
If the multimeter is in a place that is hard to reach to read the screen, you can press a button to “freeze” the readings for later viewing using the Hold function. There is a backlit screen and a built-in flashlight. The device is powered by standard batteries.
Key features:
- Color screen with a digital display and graphic scale, True RMS calculations
- Voltmeter, ohmmeter, capacitance meter, and frequency meter functions
- In Smart mode, it automatically detects and measures certain parameters
- Diode test, phase detection, continuity test, NCV detection
- Hold function, built-in flashlight, powered by batteries

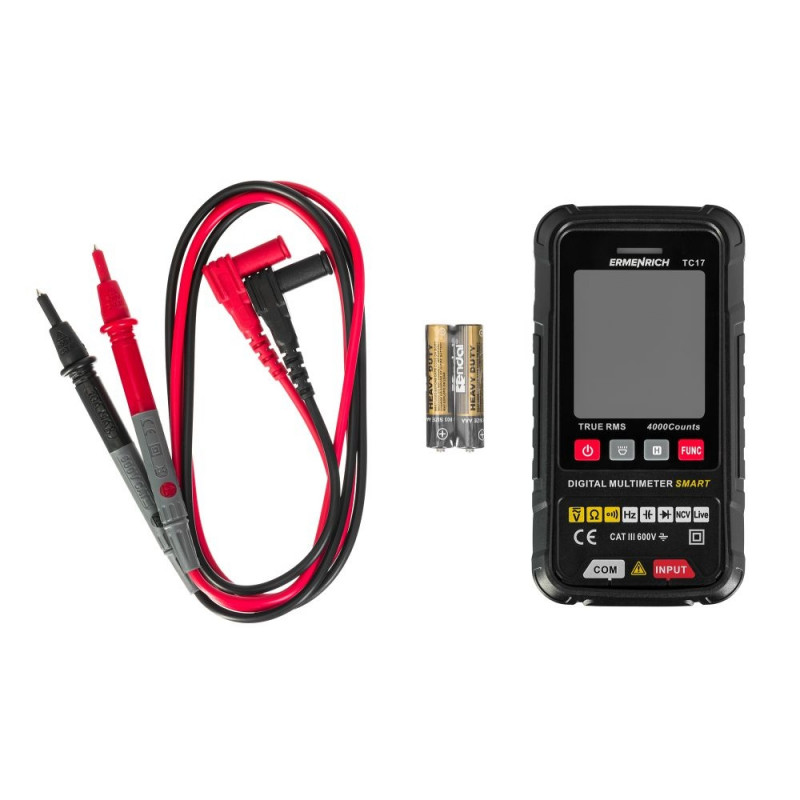

The kit includes:
- Digital multimeter
- Probes
- User manual and warranty card
| Brand | Ermenrich |
| Warranty | 5 лет |
| EAN | 5905555017624 |
| Package size (LxWxH) | 16x9x5 cm |
| Shipping Weight | 0.28 kg |
| Selection of the measuring limit | automatic |
| Basic functions | voltmeter, ohmmeter, capacitance meter, frequency meter |
| DC voltage measuring limit | 400mV/4V/40V/400V/600V: error ±(0.5%+3) |
| AC voltage measuring limit | 4/40/400/600V: error ±(0.8%+3) |
| Resistance measuring limit | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ: error ±(1.0%+5) |
| Capacity measuring limit | 4nF/40nF/400nF/4μF/40μF/400μF/4mF: error ±(4.0%+5) |
| Frequency measurement limits | 4Hz/40Hz/400Hz/4kHz/40kHz/200kHz/400kHz/4MHz: error ±(1.0%+3) |
| Diode test | + (0–2V) |
| Non-contact voltage detection (NCV) | yes |
| True RMS | yes |
| Hold function | yes |
| Automatic recognition function (Smart) | + (only for DC and AC voltage, resistance and continuity) |
| Phase detector (Live) | yes |
| Overvoltage category | CAT III 600V |
| Display | VA |
| Display counts | 4000 |
| Display backlight | yes |
| Graphic scale | yes |
| Flash light | yes |
| Safety standards | EN61010-1,-2-030; EN61010-2-033; EN61326-1 |
| Continuity test | +, combined with resistance measurement mode (<500Ω) |

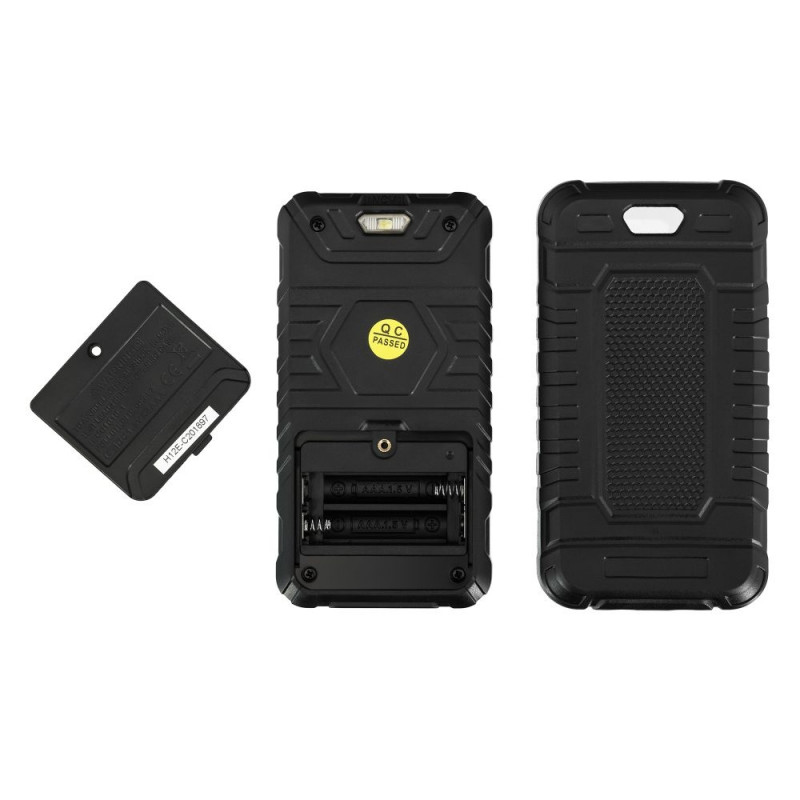

| Power supply | 2 AAA batteries (not included) |
| Low battery status indicator | yes |
| Auto power off | yes |
| *Can be put into parcel-machine | Истина |
