Ermenrich Zing TC13 Digital Multimeter
144-L_82980
Main info
Warning: Last items in stock!

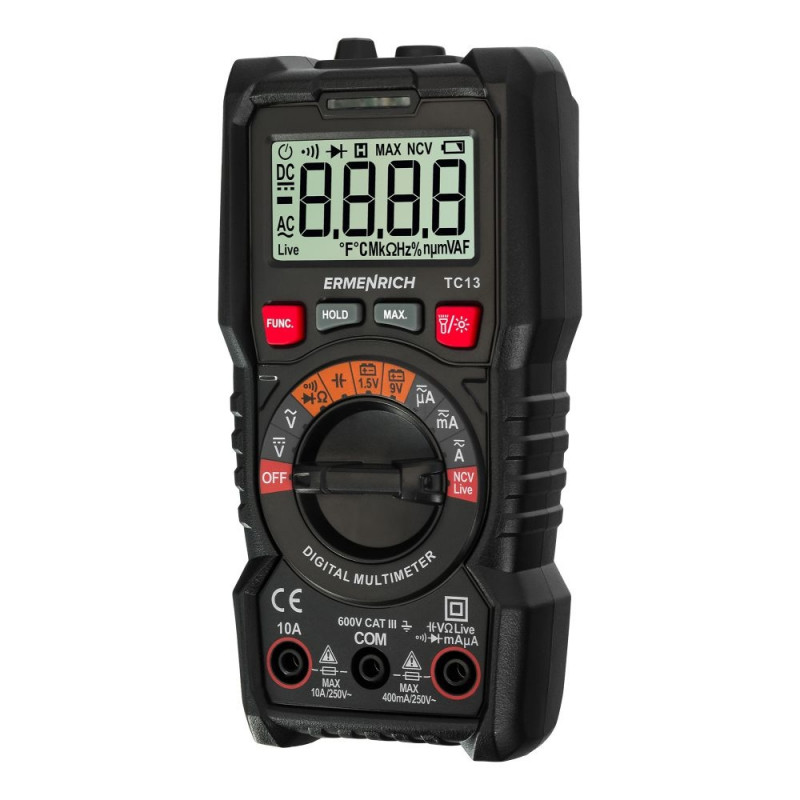

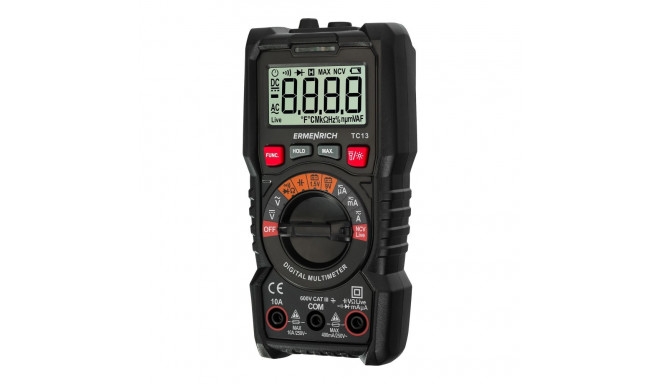

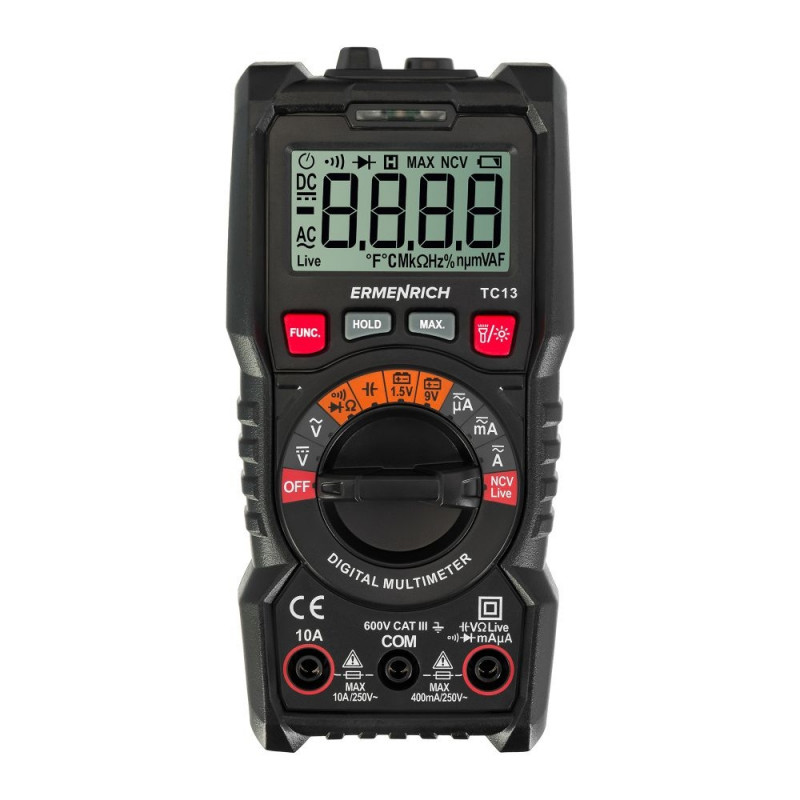

Ermenrich Zing TC13 digital multimeter is a multifunctional portable tool for testing electrical networks and measuring the characteristics of the electrical signal. The device is intended for professional use by technicians, but it can also be suitable for non-specialists for household tasks. In addition to voltage, current, and resistance, Ermenrich Zing TC13 can measure capacitance, frequency, and duty cycle.
The operating mode can be manually selected with the rotary switch. As for the measuring limits, the device sets them automatically. This is a True RMS device, i.e., the calculations are based on the True RMS formula. Compared to standard models, this increases the accuracy and precision of variable measurement.
The device has a hold function, which makes it easy to take measurements. This is a useful option for situations where the position of the device makes it uncomfortable to look at the screen. The hold function allows you to “freeze” the data and check it later. The device also provides a maximum values record. With Ermenrich Zing TC13, you can test diodes, locate network faults (short circuits and open circuits), search for hidden live wiring, and check the battery health. There is a built-in flashlight for working in low-light conditions.
The multimeter is powered by standard batteries.
Key features:
- True RMS multimeter with manual mode selection and the automatic setting of measurement limits
- Measurement of voltage, current, resistance, capacitance, frequency, and duty cycle
- Continuity test, diode test, non-contact voltage detection, battery test
- Such functions as hold and a record of the maximum values

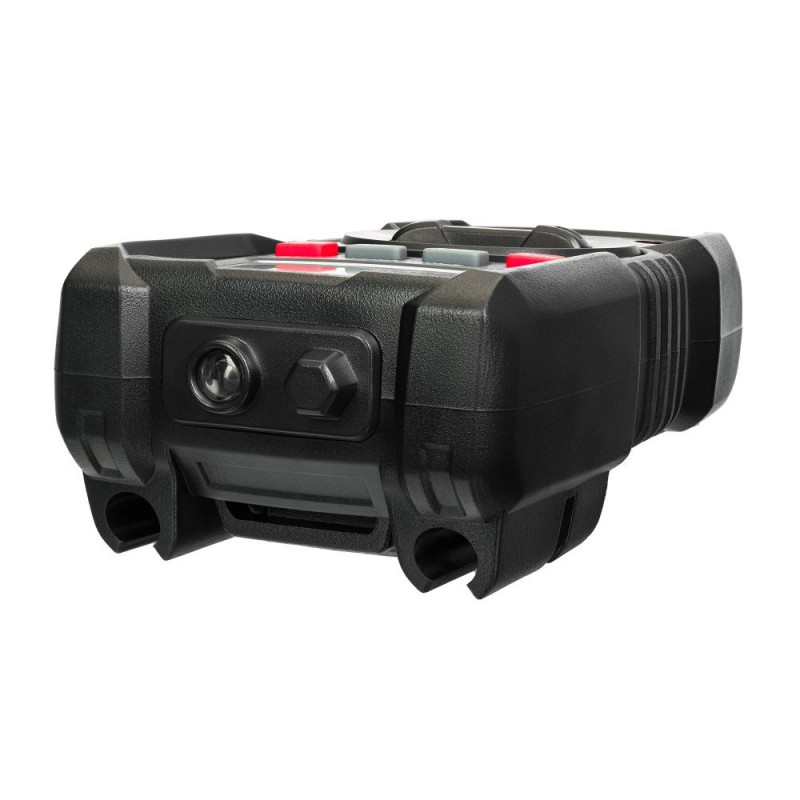

- Built-in flashlight, powered by batteries, and the auto-off function saves battery power

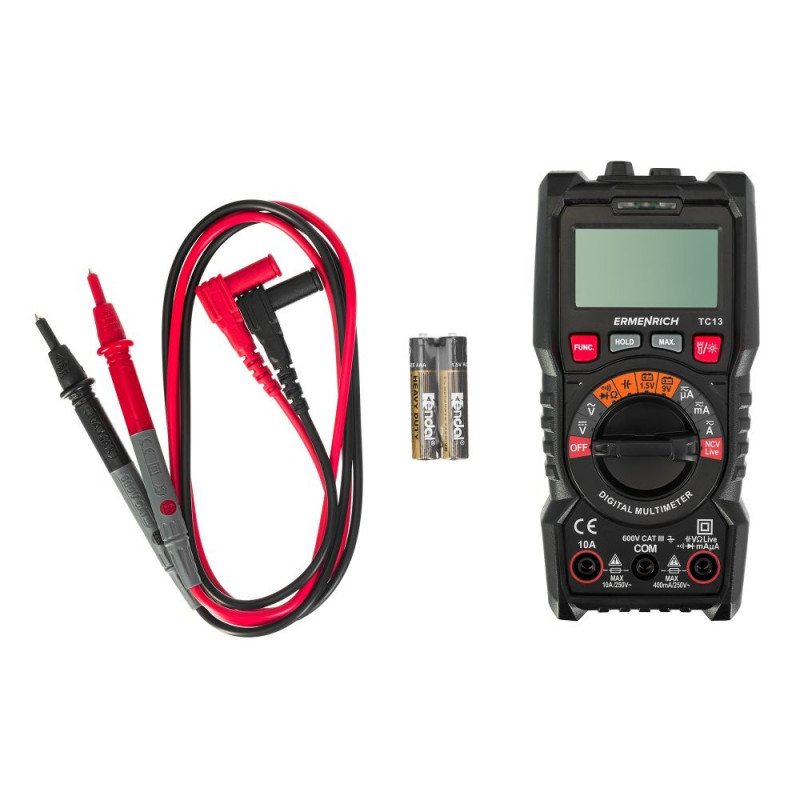

The kit includes:
- Digital multimeter
- Probes
- User manual and warranty card
| Brand | Ermenrich |
| Warranty | 5 лет |
| EAN | 5905555017594 |
| Package size (LxWxH) | 16x11x5 cm |
| Shipping Weight | 0.34 kg |
| Diodes test | yes |
| Non-contact voltage detection (NCV) | yes |
| True RMS | yes |
| Hold function | yes |
| Continuity test | yes |
| Display counts | 4000 |
| Display backlight | yes |
| Flash light | yes |
| Low battery status indicator | yes |
| Auto power off | yes |
| Battery test (1.5V/9V) | yes |
| Selection of the measuring limit | automatic |
| Basic functions | voltmeter, ammeter, ohmmeter, capacitance meter, frequency meter, duty cycle meter |
| DC voltage measuring limit | 400mV/4V/40V/400V/600V: error ±(0.5%+3) |
| AC voltage measuring limit | 400mV/4V/40V/400V/600V: error ±(1.0%+3) |
| DC current measuring limit | 400µA/4000µA/40mA/400mA: error ±(1.2%+3), 10A: error ±(2.0%+3) |
| AC current measuring limit | 400µA/4000µA/40mA/400mA: error ±(1.5%+3), 10A: error ±(2.0%+3) |
| Resistance measuring limit | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ: error ±(1.0%+3) |
| Capacity measuring limit | 10nF/100nF/1µF/10µF/100µF/1mF/10mF: error ±(4.0%+5), 100mF: error ±(5.0%+5) |
| Frequency measurement limits | 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz: error ±(1.0%+3) |
| Duty cycle measurement range | 1–99%: error ±(3.0%+3) |
| Throughput capacitance | 40–1kHz |
| Limit value function (Min/Max) | + (maximums only) |
| Overvoltage category | CAT III 600V |
| Display | LCD |
| Safety standards | EN61010-1,-2-030; EN61010-2-033; EN61326-1 |

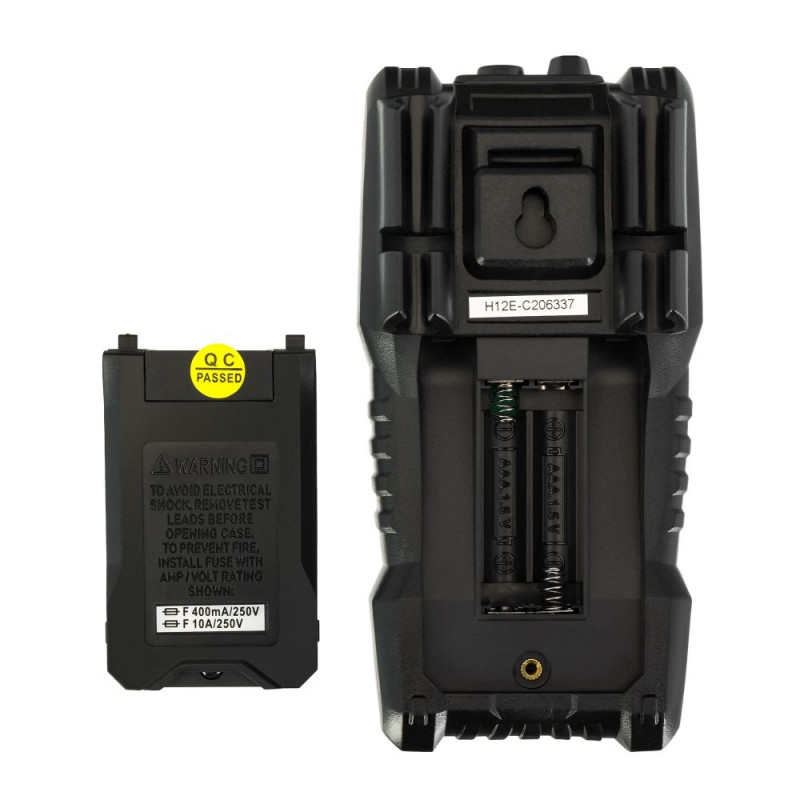

| Power supply | 2 AAA batteries (not included) |
| *Can be put into parcel-machine | Истина |
