Home page » Electronics»Cellphone accessories»Accessories for walkie-talkies»Alinco DJ-X11E scanner 0.05~1299.99995MHz, AM/FM/WFM/SSB/CW, 1800mAh battery LiIon, charger, battery

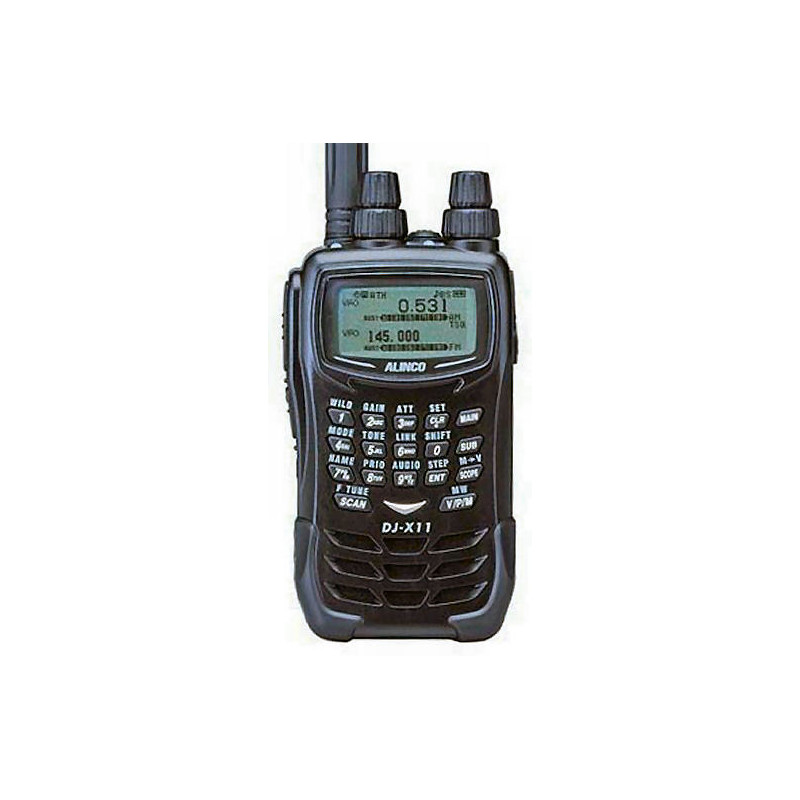

Alinco DJ-X11E scanner 0.05~1299.99995MHz, AM/FM/WFM/SSB/CW, 1800mAh battery LiIon, charger, battery

405,65 €

Main info

Alinco DJ-X11E scanner 2VFO simultaneous RX Main-band coverage: 0.05`1,299.99995MHz all mode AM/FM/WFM/SSB/CW Sub-band coverage: VHF:118`171MHz/UHF:336`470MHz in AM/NFM 1200 memory channels with adjustаble memory banks using utility freeware (op

Product is out of stock

Free delivery

14 14 days return policy when purchasing online

Alinco DJ-X11E scanner

  • 2VFO simultaneous RX
  • Main-band coverage: 0.05`1,299.99995MHz all mode AM/FM/WFM/SSB/CW
  • Sub-band coverage: VHF:118`171MHz/UHF:336`470MHz in AM/NFM
  • 1200 memory channels with adjustаble memory banks using utility freeware (optional PC cable required)
  • Voice-guidance system reads entering/entered frequency in English
  • Easy-to-use twin dials
  • Pocket size unit measures 61 (W) x 106 (H) x 38 (D) mm / 2.4 (W) x 4.17 (H) x 1.50 (D) in (without projections)
  • Rigged Polycarbonate body with rubber protectors
  • Selectаble tuning steps: 0.05/0.1/1/5/6.25/8.33/9/10/12.5/15/20/25/30/50/100/125/150/200/500kHz/1MHz
  • Various scan modes: Preset, programmed, memory, VFO and tone scan
  • 3 selectаble scan speeds (VFO: 25ch/s, 33ch/s, 100ch/s, Memory: 4.5ch/s, 8.3ch/s, 20ch/s)
  • TSQ and DCS decode
  • Wire remote-control using optional EDS-12
  • Long-lasting 1800mAh Li-Ion battery pack provides nearly 15 hours of operation at full audio output in a single RX mode
  • 1200 Alphanumeric (up to 16 characters) memory channels
  • Additional 100 memory channels are available for each Dual-mode memory, Search-pass, Priority monitoring and Programmed Scanning pairs
  • Large, brightly illuminated full dot-matrix LCD and keypads
  • Dual channel-scope (Alinco´s patented spectrum-analyzer alike feature)
  • Frequency counter and flash tune
  • "Bug detector" function searches for hidden transmitters
  • Illuminated keypad for comfortаble operation
  • Standard Drop-in charger fully charges empty EBP-74 in 4 hours
  • RF gain and attenuator for both main/sub VFOs
  • Analog inversion-scramble decoder

    • About PC connection:

  • ERW-7 allows you to use clone or utility software only.
  • ERW-8 enables the use of both clone-utility AND real-time control software.

    • Indicative battery duration:

  • Approx. 35 hours (FM, single VFO, AF10% THD, 1 min RX/4 min Stand-by/EDH-36 (with Alkaline cells) or EBP-74)
  • Approx. 15 hours (FM, single VFO, Max AF outputEBP-74)

    • Technical data

  • Receiver range: Main VFO 0.05 - 1299.99995 MHz
  • Mode: FM,WFM,AM,SSB(USB/LSB),CW(CU/CL)
  • Antenna Impedance: 50 ohms (SMA)
  • Supply voltage: DC 3.7V (EBP-74) / DC 4.5V (EDH-33) / DC 5.4V - 6.0V (external regulated source) negative ground
  • Current consumption: approx.130mA Mono band / 180mA Dual band
  • Temperature range: -10 to +60 dig C (+14 to +140 dig F)
  • Frequency stability: -7 to +3ppm(-10 to +60 dig C)(+14 to +140 dig F)
  • Dimension without projection: 61 (W) x 106 (H) x 38 (D) mm / 2.4 (W) x 4.17 (H) x 1.50 (D)
  • Weight: Approx.235g / 8.29 oz (Ant.& EBP-74 inclusive)
  • Audio Output power: More than 100mW (8ohm)

    • In the box

  • Instruction manual
  • Whip antenna (EA-154)
  • Li-Ion battery-pack (EBP-74:1800mAh, 3.7V)
  • Belt-clip (EBC-23)
  • hand strap
  • Drop-in charger kit EDC-174A (120V) or EDC-174E (220V)
  • Dry cell case (EDH-36)

    • Product codes

    EAN
    4969182350234
    Manufacturer code
    LC09
